Foundation Waterproofing

A LASTING SOLUTION

Waterproofing

Water infiltration often occurs in the basement of homes and can cause a variety issues including mould, unpleasant odors, stained drywall, and damage to framing and finished areas.

Once your foundation starts permeating water, the deterioration of your concrete will accelerate rapidly. Addressing the issue immediately will prevent deterioration and ensure that the problem does not escalate any further. Our waterproofing is completed on the exterior of your foundation walls with top quality materials and workmanship.

Here to help

Our Process

01
Excavation

First, we excavate about 4’ along the exterior foundation wall down to the base of the footing with appropriate safety slope. All excavated material will then be removed from the job site. Next, we clean the exposed foundation walls with a pressure washer and inspect the foundation walls and joint conditions.

Once the initial inspection and repairs are complete, we dry and prepare the foundation walls and footing for our membrane.

02
WATERPROOFING

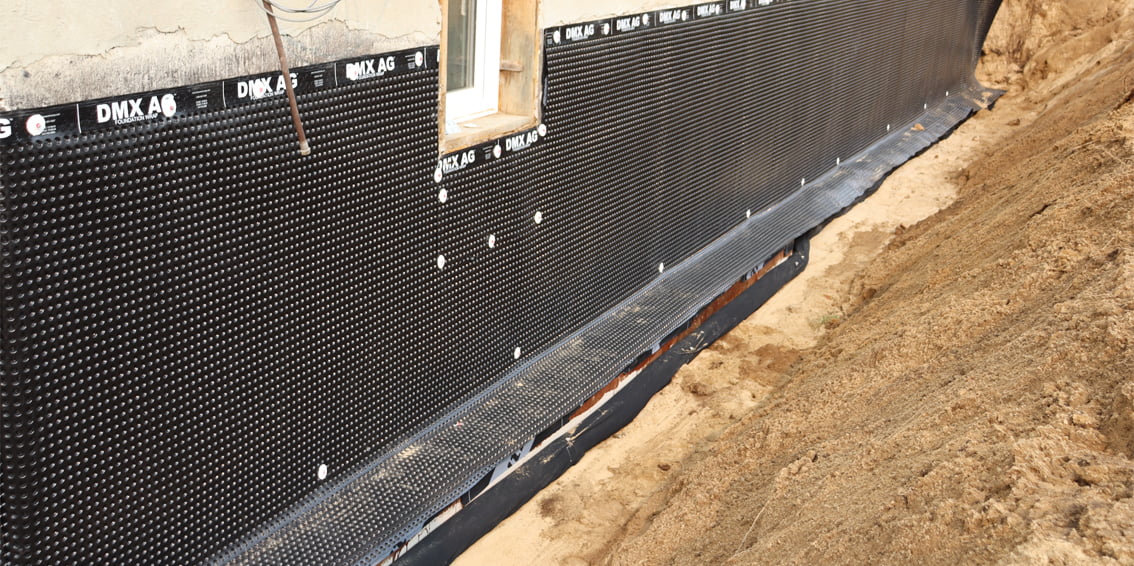

Below final grade elevation, we install Bituthene 3000 Low Temperature waterproofing membrane to the prepared foundation wall. Next, the restored and waterproofed foundation walls are protected with drainage/ protection membrane (System Platon) or 2” SM Styrofoam for additional frost protection (if required).

Geotextile is then installed along the exposed soil side of the trench (to prevent soil from migrating into our backfill material) and a new 4” diameter weeping tile (wrapped in a permeable sock) is connected to the existing tested and functioning house drainage system.

03
FINAL STEPS

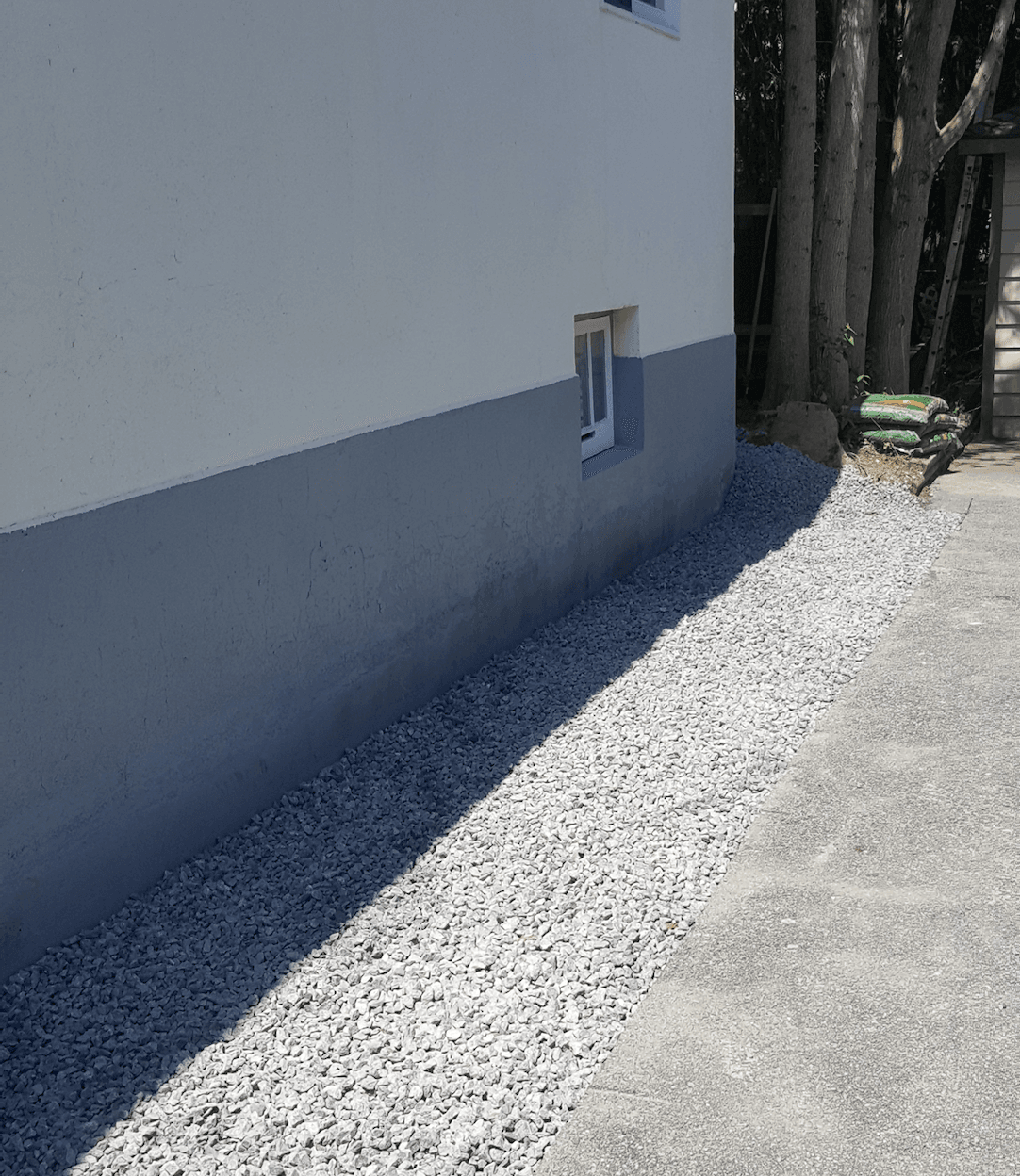

Lastly, EC Foundations will conduct the final inspection. We then backfill using ¾” clear crushed stones only, sloping away from the house to ensure positive drainage.

Upon completion of the project, the area is properly cleaned and debris is removed.

Photo Gallery

How it’s Done

Scroll through the photo gallery or click on an image to learn more about our process.

FOUNDATION REPAIRS

Request an Estimate

Our team takes pride in offering outstanding service and adhering to the highest standards of workmanship. While many offer a one-size-fits-all approach to foundation repairs, EC Foundations has the experience, expertise, and skillset to carefully examine each individual situation and develop customized solutions tailored to your home’s unique needs. No shortcuts!

Foundation waterproofing ottawa

Foundation Waterproofing in Ottawa

Foundation waterproofing is essential to protect your property from water damage and maintain the integrity of your foundation. At EC Foundations, we offer comprehensive waterproofing solutions tailored to your specific needs. Our experts use advanced techniques and high-quality materials to ensure your foundation remains dry and secure. Prevent costly repairs and safeguard your home with our professional foundation waterproofing services.
